What Is An Ejector Pin Element?

by Thomas Rivera
0 comment

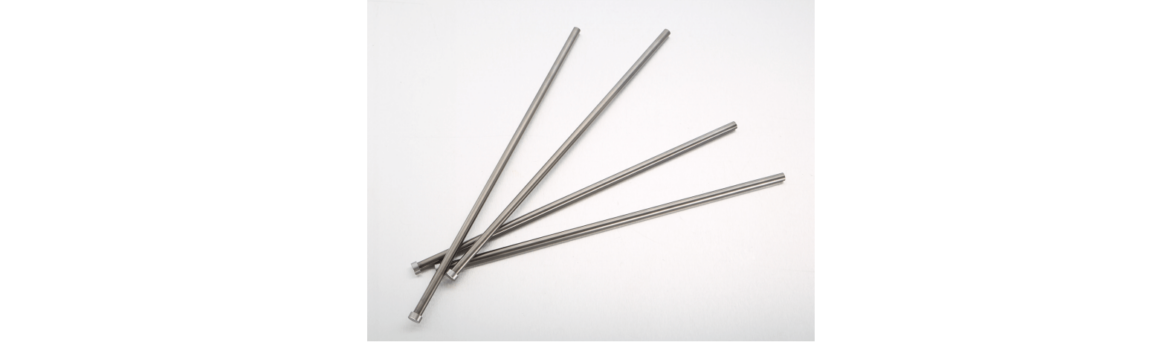

Ejector Pin

So you are in need of that customized plastic mold part or, better yet, a product. However, you may not be aware of the whole manufacturing process of the commodity. Do you wish to have a large or small product? Would you like to have it flexible or just slightly stiff? Should it be round or have a weird shape? In this guide, we take a detailed look at the tenets of molding, including why an ejector pin is used in the manufacturing process. What is an ejector pin? What is an ejector pin element?

The article covers different types of molding processes in the market too. That way, you will be better placed to comprehend the ideal processes for your projects. And even though our company majors in rational molding, we have also considered other types for you to find help in selecting the best there is on the market. Our objective is to be helpful. Let us begin, shall we?

Ejector pins – What Are These?

An ejector pin is an essential bouncer material used in the molding world. The element applies some force to eject a crucial part from the actual mold. In other cases, some marks can be left behind. That is why most companies involved in this business are determined to design as well as position the pins appropriately to minimize their impact on the user’s machine parts while determining the actual pin placement.

At the same time, customers will get the chance to sign off on various pin locations before finalizing an order. Typically, the pins are situated where the mold opens. And immediately it opens, they are extended into the cavity of the mold. You can always go ahead and push the existing parts out, then retract and allow the mold to close before being refilled comfortably.

How The Ejector Pin Works – The Working Principle

For the operation of an ejector pin to be relevant and understood, you need to comprehend the actual working principle of an ejector pin. Usually, the principle behind the working of an ejector is that the pressure energy found in the motive fluid is often converted to reliable velocity energy using adiabatic expansion found in the nozzle.

And following the pressure drop of the fluid found in the motive, then it is going to create some low-pressure zone before mixing the elements in the chamber.

The ejection of your product is usually the last phase of product development and design in plastic injection. At this point, the size of the pin has a way of determining the exact quality of the product. And anytime the mold opens, the product needs to be retained on that mold. This is often found at the core of the product. That is why, in every injection molding project, a pin becomes relevant.

Final Thoughts

Most photo labs make great use of significantly rounded ejector pins. The replacement of these objects is highly dependent on different elements. For starters, the shape plays a major role in determining this. But in the end, what matters in the understanding of how it all happens.
