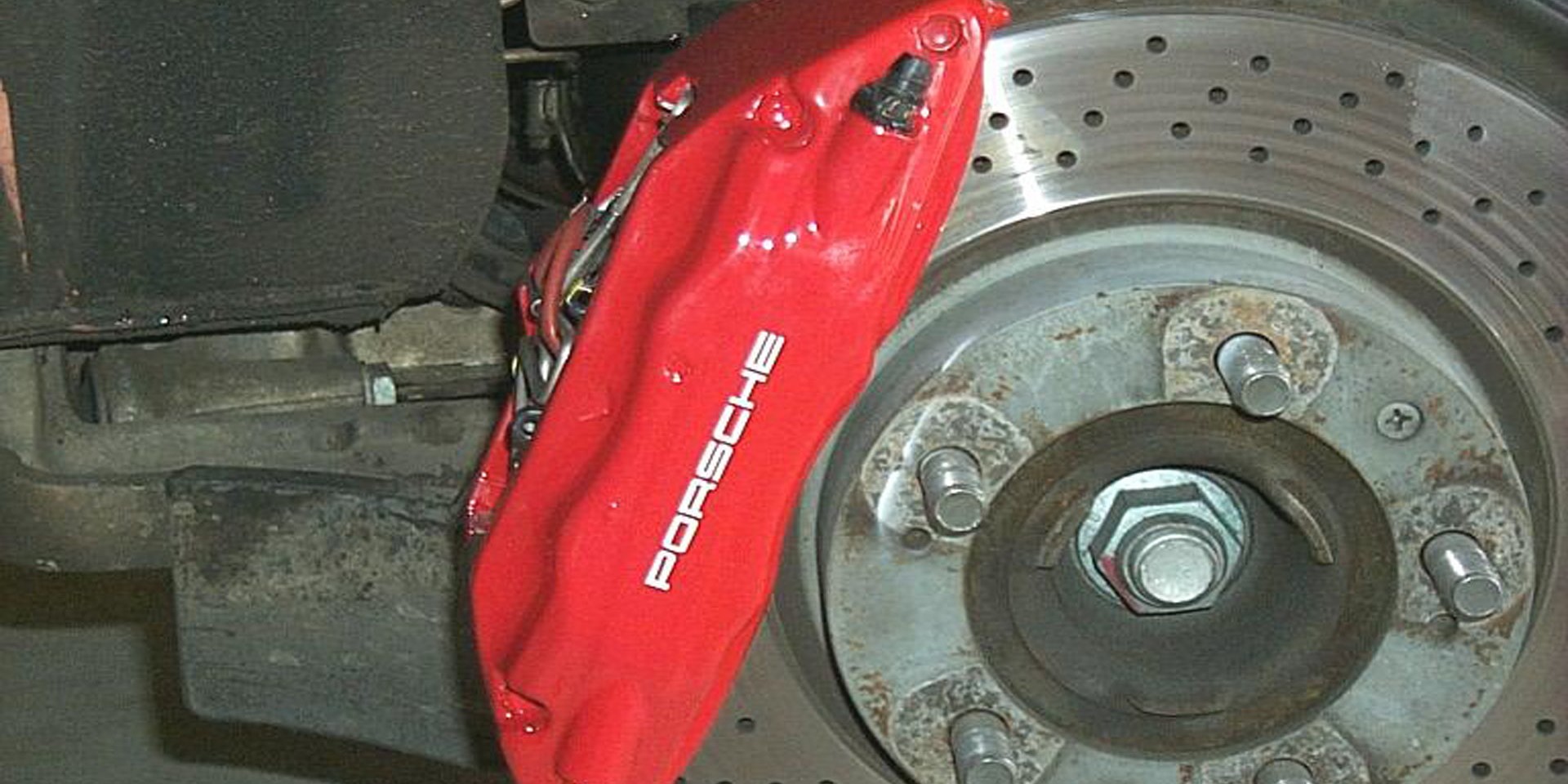

The Different Types of Brake Calipers

by Thomas

Brake calipers are an important safety feature on any vehicle. The different types of brake calipers, their pros and cons can be daunting to understand if you’re not sure what they do or why one might suit your needs better than another! This article will help explain all about them so that when it comes time for buying new pads at lease recall yourself from confusion by making informed decisions based off knowledge instead emotion.

Cantilever brakes

Cantilever brakes are a relatively new type of bicycle braking system. They were once considered so exotic that you would be lucky to find them on a bike at a department store. Today, they can be found on many types of bikes, including those purchased at the local chain store. Even so, they still maintain a certain air of mystery. In this article, we’ll take a look at their geometry and how they work.

Cantilever brakes are similar to caliper brakes but have a few differences. For one thing, caliper brakes clamp on the side of the wheel, while cantilever brakes are mounted on the frame or fork with a single bolt. Both types of brakes work by pulling the brake cable and the brake arms towards the rim of the wheel, slowing the bike down.

Fixed caliper

Fixed brake calipers are the standard in the automotive industry. They have two pistons on opposite sides of the rotor and have a solid mounting bracket. Compared to floating calipers, fixed calipers are more powerful, but also more expensive. The primary difference between the two types of calipers is the amount of clamping force they provide.

Fixed calipers are used on performance and high-end cars, and are best for cars with a high brake performance. They can compress a brake disc well and result in a uniform stop when braking. A typical fixed caliper has two pistons, and twin pistons are available in certain types. Twin pistons allow the rotor to be larger, which is important in racing applications.

Ceramic brakes

Carbon ceramic brakes are a promising material for braking systems. They have many advantages over conventional metal and plastic brakes, but they require complex manufacturing processes and higher costs. This is because carbon material has a higher operating temperature than normal brakes, which increases the friction coefficient. This has hindered the growth of the market for carbon ceramic brakes.

Carbon ceramic brakes have high surface temperatures that can reach several hundred degrees C. This causes more heat to enter the braking system, which leads to more frequent caliper rebuilds and boiling brake fluid.

Side-pull brakes

When installing side-pull brakes, there are a few things you should know. For one, the pivot for the brake arms is located above the wheel, which means the brake pads do not need to touch the wheel at the same time. This will allow the other brake pad to strike the wheel later, and squeeze the braking surface. Another important detail to consider is the correct brake pad size. Depending on the bike model, you may want to use a different type of pad.

In contrast, side-pull brakes are less complicated than other types of calipers. The cable runs through two arms, each linked to another by a steel spring. When the brake lever is squeezed, the cable pulls one arm, which then activates the second arm. The arms then hold brake pads and create friction to slow down the vehicle.
